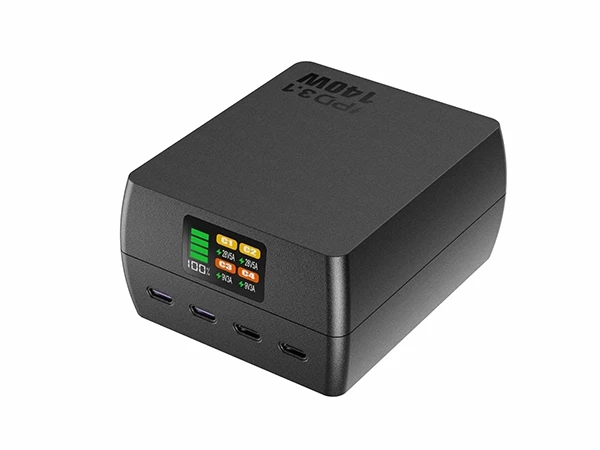

TL180
TL180

    Model number： TL180

    TL180

    • Ultimate mini power station
    • 27000mAh, PD140W, PD3.1 and QC4+, support Mbook Pro 16
    • Port: USB-C*4, simultaneously PD fast charge 4 devices.
    • Dimension: 98*81*48mm
    • Weight: 630g

    Detailed specifications:

    1. Plastic housing with original color
    2. With TFT Display to show the remaining power.
    3. Input 1: USB-C1 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A,28V/5A(140W max)
      Input 2: USB-C2 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A,28V/5A(140W max)
    4. Output 1:USB-C1 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A,28V/5A(140W max)
      *PPS* 3.3-16.6V/6A (66W max)
      Output 2: USB-C2 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A,28V/5A(140W max) *PPS* 3.3-16.6V/6A (66W max)
      Output 3: USB-C3 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/2A(30W max)
      Output 4: USB-C4 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/2A(30W max)
    5. Total Power:USB-C1/ C2/ C3/ C4 PD240W (max)
    6. Support Agreement :PPS/PD3.1/3.0/QC4.0+/3.0/2.0/AFC/SCP/FCP/BC1.2/APPLE2.4
    7. Four USB-C ports independently support fast charge,Simultaneously Charge 4 devices.
    8. Simultaneously: (1) USB-C1 / C2 =140W max or USB-C3 / C4 =30W max
      (2) USB-C1 / C2 / C3 / C4 Can be divided the power into different level smartly.
      *1.(28V）USB-C1 / C2 140W +（20V）USB-C1 / C2 100W =Total: 240W max
      *2.(20V）USB-C1 / C2 100W +（20V）USB-C1 / C2 100W =Total: 200W max
      *3.(20-28V）USB-C1/ C2 100-140W +（15V）USB-C3 / C4 30W =Total: 170W max
      *4.(20V）USB-C1 65W + C2 65W +（15V+ USB-C3 30W+ C4 30W =Total: 160W max
    9. Supporting input(USB-C1/ C2) and output(USB-C1/ C2/ C3/ C4) in fast mode at the same time.
