TL156/TL156Plus
TL156/TL156Plus

    Model number： TL156-TL156Plus

    TL156/TL156Plus

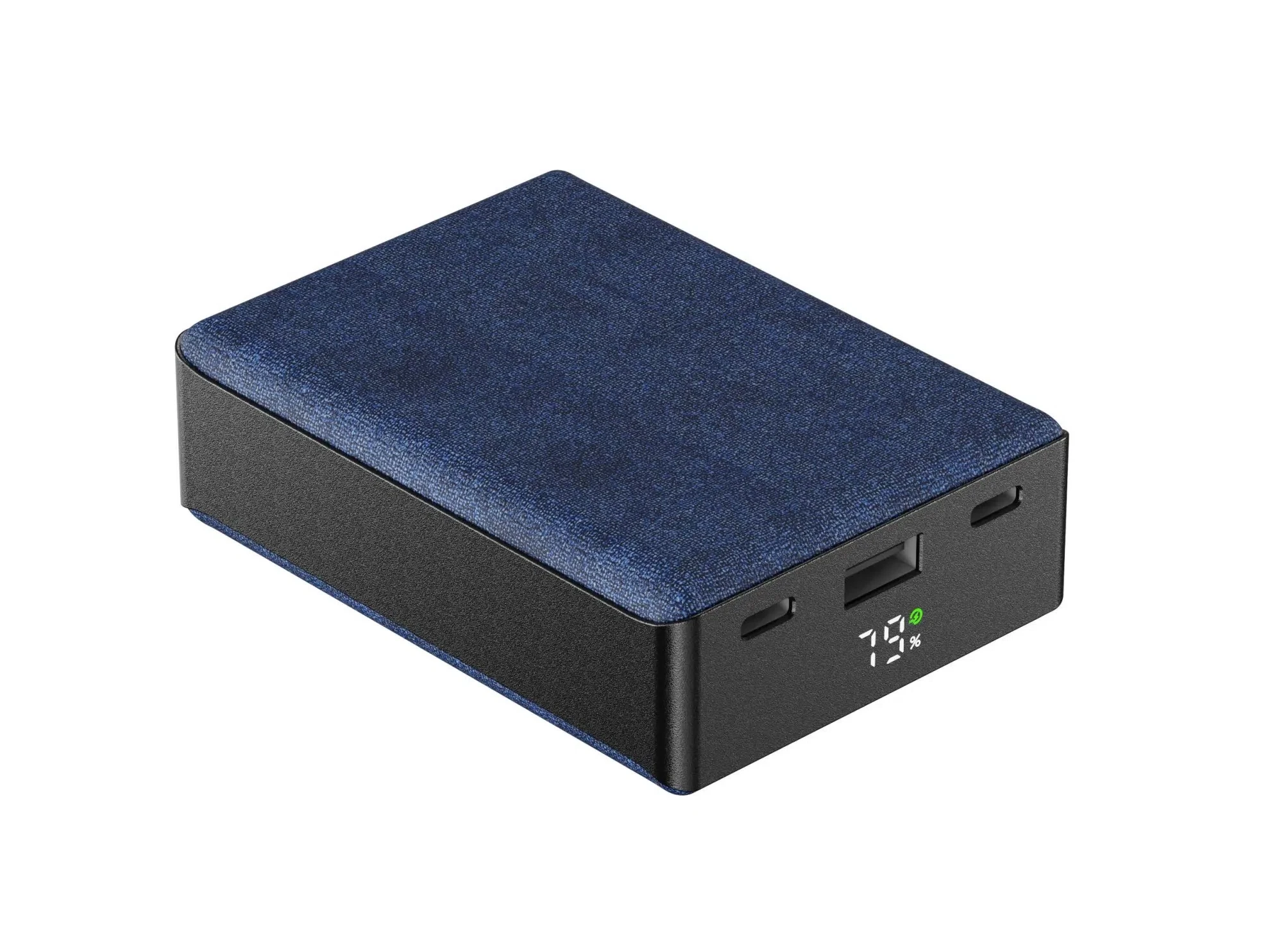

    • Smart mini power bank
    • 20000mAh, support in/out PD45W/70W, PD3.0 & QC4+
    • Port: USB-C*2 (support in/out), USB-A*1
    • Dimension: 94*68*31.5mm
    • Weight: 330g, 340g(TL156Plus)

    Detailed specifications:

    1. Plastic housing with leather
    2. With 188 LED Display to show the remaining power.
    3. Input 1: Type C1 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/3A, 20V/2.25A(45W max)
      Input 2: Type C2 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/3A, 20V/2.25A(45W max)
    4. Output 1:Type C1 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/3A, 20V/2.25A(45W max)
      *PPS* 3.3-15V/3A (45W max)
      Output 2: Type C2 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/3A, 20V/2.25A(45W max)
      *PPS* 3.3-15V/3A (45W max)
      Output 3: USB QC 5V/3A, 9V/2A, 12V/1.5A (22.5W max)
    5. Total Power: Type C1 + C2 45W (max)
    6. Support Agreement :PPS/PD3.0/QC4.0+/3.0/2.0/AFC/SCP/FCP/BC1.2/APPLE2.4
    7. Simultaneously Charge 3 devices .(Total Power 5v6A)
      *1. USB-C1 + USB-C2 =(5V6A=30W max)
      *2. USB-C1 + USB-A =(5V6A=30W max)
      *3. USB-C + USB-A =(5V6A=30W max)
      *4. USB-C + USB-C2+USB-A =(5V6A=30W max)
    8. Supporting input and output in fast mode at the same time.
